[ FFF 3D Printer ] 7X
The finest detailed 3D printer
[ FFF 3D Printer ] 7X

MASSIVE PRINT SIZE SUITED FOR INDUSTRIAL 3D PRINTER

Need to print a large model?

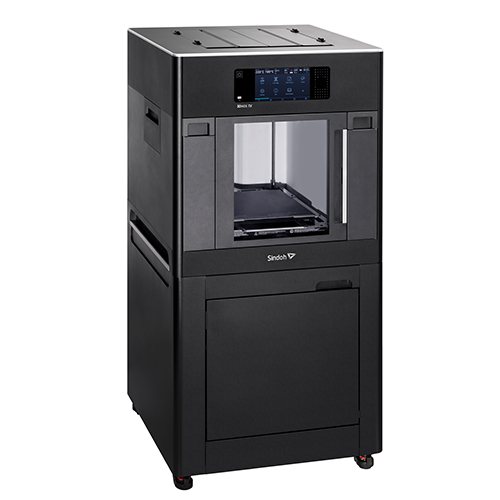

3DWOX 7X is an industrial grade 3D printer with a maximum build
size of 380 x 390 x 450mm. It can be used for industrial or
Commercial applications by printing a large model at once.

INDEPENDENT DUAL NOZZLE

Two Independent dual nozzles and two cartridges provide better performance.
Mixture of two colors and two materials allows a variety of outputs to match the desired style.

VOICE SUPPORT

7X is equipped with voice support user guide function for more convenient use.
Over 100 items are available for guidance such as the power, booting, output start and completion of the product, and the occurrence of the problem so that the user can operate the device quickly and accurately to solve the problem.

PLEASANT PRINTING ENVIRONMENT

Product features have been enhanced to enable seamless use of 3D Printers in office and research spaces. Four H13 grade HEPA filters with the removal rate of 99.95% of fine particles over 0.3㎛ have been embedded on the back of the device. Also, the noise generated during printing has been minimized to 55dB (A) which can be used comfortably even at night or in a confined narrow space.

AUTO BED LEVELING

High accuracy bed leveling sensor has been applied to maximize output quality. The full auto leveling function makes printing easier and the active leveling function calculates even the small inclination of the bed while the output is being printed, which result in an overall better quality.

Output
  1. Method

    FFF (Fused Filament Fabrication)

  2. Build Size (W x D x H)

    Single Nozzle: 380 x 390 x 450 mm
    Dual Nozzle: 370 x 390 x 450 mm

  3. Layer Thickness

    0.05 ~ 0.4 mm

  4. Nozzle

    Dual Nozzle (independent)

  5. Nozzle Diameter

    0.4 mm

Material
  1. Diameter

    1.75 mm

  2. Material

    PLA (9 colors), ABS (7 colors), Flexible (6 colors), PVA (water-soluble)

Bed
  1. Supply

    Automatic Supply

  2. Material

    Flexible Heating Bed

  3. Leveling

    Full Auto Leveling (Supports Active Leveling)

General
  1. Slicing Software

    3DWOX Exclusive Slicing Software

  2. Input File Format

    stl, ply, obj, G-Code (RepRap), amf

  3. Interface

    3.0 Device / 2.0 Host, Ethernet (1G), Wi-Fi

  4. GUI

    10.1-inch Full Color Touchscreen

  5. Internal LED

    Pre-installed

  6. Web Monitoring

    PC, Smartphone, Tablet

  7. Filter

    HEPA Filter (4 pieces)

  8. Noise Level

    55 dB(A) (ABS standard)

  9. Size (WxDxH)

    864 x 810 x 1,690 mm

  10. Weight

    170 kg
